DIN1629/EN10216-1 Seamless Steel Tubes of Non Alloy Steel

Seamless steel tubes for pressure purposes.

Detailed Description

• Carbon steel tubes for machine structural purposes .

• Standard:
  • DIN 1629: Seamless Circular Tubes of Non Alloys Steels with Special Quality Requirements.
  • EN 10216-1: Seamless steel tubes for pressure purposes - Technical delivery conditions - Part 1: Non-alloy steel tubes with specified room temperature properties
• Size (mm):
  • Outer Dimensions: 6.0mm ~ 219.0mm
  • Wall Thickness: 1.0mm ~ 30 mm
  • Length: max 12000mm
• Application: It is used for manufacturing pipeline,vessel,equipment,pipe fittings .
• The main products of steel / steel grade: DIN1629(ST37.0, ST44.0, ST52.0), EN10216-1(P195, P235, P265).

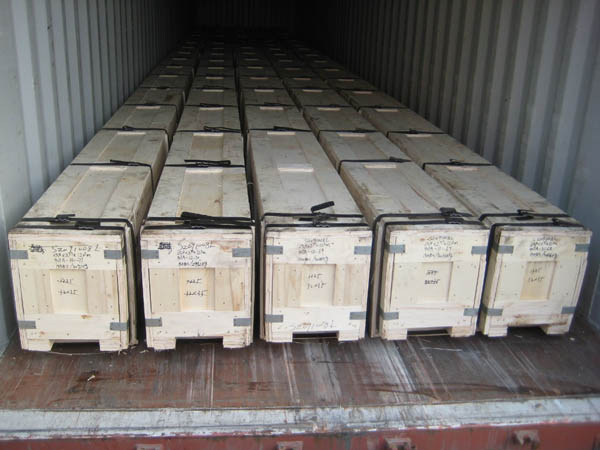

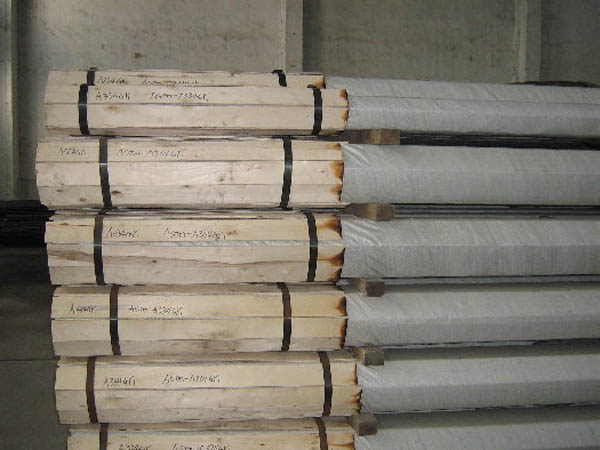

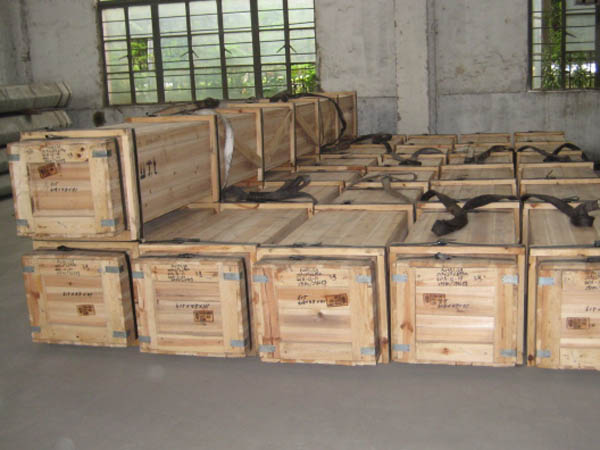

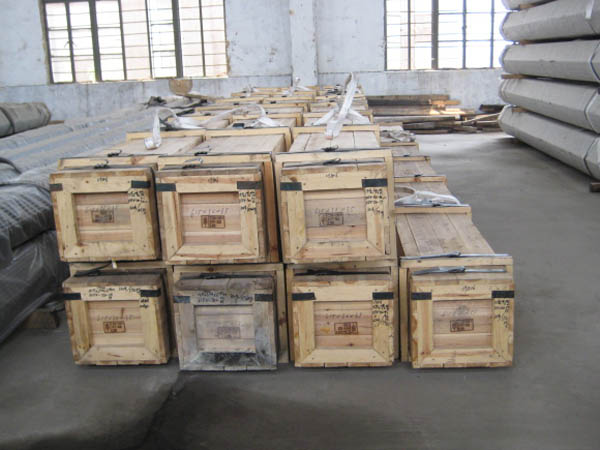

• Packing: Bare/bundles/crates/crate protection at the both sides of tubes or as per customers' requirements .
• Painting: as requested.

DIN1629: Chemical Compositions(%)

Grade	C	Si	Mn	P	S
ST37.0	≤0.17	/	/	≤0.040	≤0.040
ST44.0	≤0.21	/	/	≤0.040	≤0.040
ST52.0	≤0.22	≤0.55	≤1.70	≤0.040	≤0.035



DIN1629: Mechanical Properties

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation(%) L	Elongation (%) T
ST37.0	≥235	350-480	25	23
ST44.0	≥275	420-550	21	19
ST52.0	≥355	500-650	21	19



EN10216-1: Chemical Compositions(%)

Grade	C	Si	Mn	P	S	Cr	Mo	Cu	Ni
P195	≤0.13	≤0.35	≤0.70	≤0.025	≤0.020	≤0.030	≤0.08	≤0.30	≤0.30
P235	≤0.16	≤0.35	≤1.20	≤0.025	≤0.020	≤0.030	≤0.08	≤0.30	≤0.30
P265	≤0.20	≤0.40	≤1.40	≤0.025	≤0.020	≤0.030	≤0.08	≤0.30	≤0.30



DIN10216-1: Mechanical Properties

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation(%) L	Elongation (%) T
P195	≥195	320-440	27	25
P235	≥235	360-500	25	23
P265	≥265	410-570	21	19

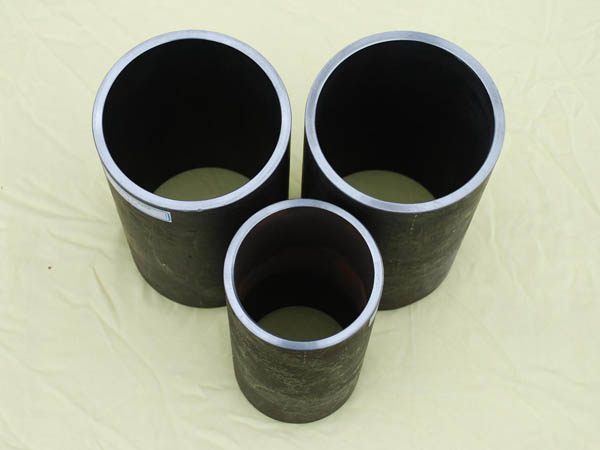

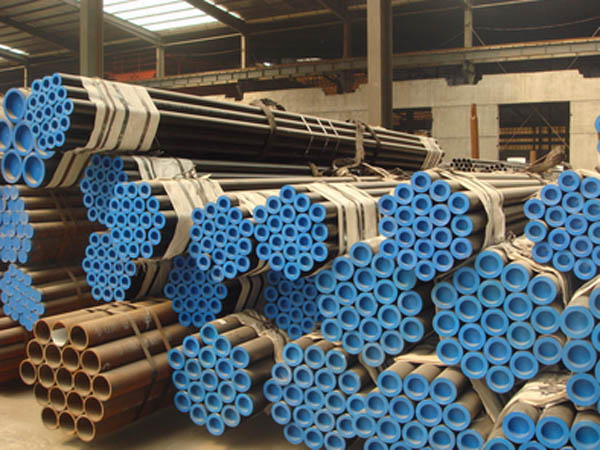

Products Photo Gallery

View or download the PDF catalogue of DIN1629/EN10216-1
